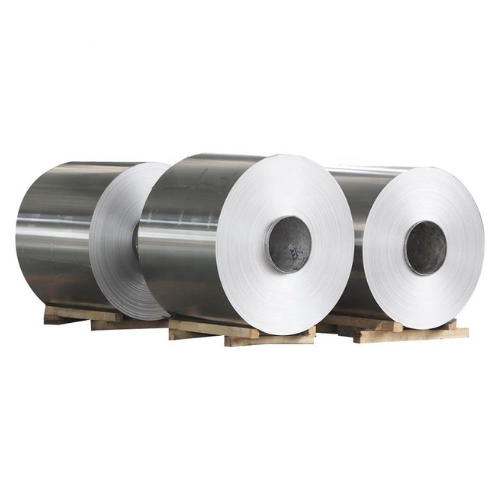

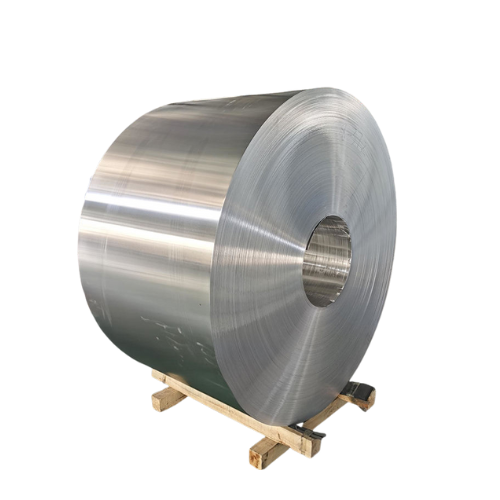

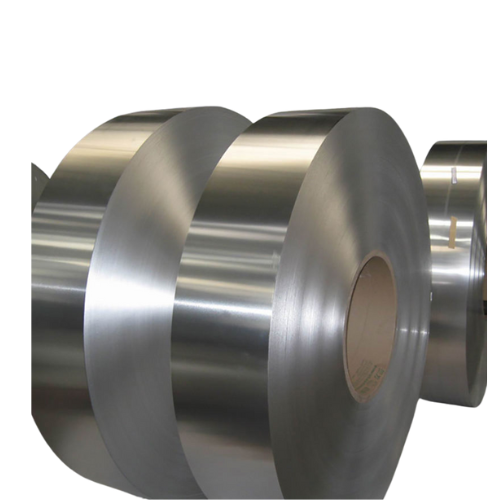

Aluminum strip

Product Name: High-Purity Aluminum Strip
Key Highlights: Excellent electrical conductivity
high tensile strength and uniform
thickness
Customization: Available in various specifications
Certification: ISO 9001/14001/45001

Key Attributes

Material Grade	1060/1100/3003/8011 aluminum alloys (Al ≥ 99.6%, customizable)
Temper	O, H14, H18, H22, H24
Dimensions	Thickness: 0.006–0.2 mm (customizable)
	Width: up to 1800 mm (customizable)
	Length: Customizable per coil (standard: 500m-1000m/coil)
Surface Quality	Clean, oil-free, burr-free (burr < 0.01 mm); double/single-sided bright finish
Mechanical Performance	Tensile strength: 40–220 MPaElongation: ≥10–40%Hardness: 20–80 HV
Electrical Performance	Volume resistivity ≤ 0.028 Ω·mm²/m; thermal conductivity ≥ 205 W/(m·K)
Execution Standard	GB/T 3198-2010, GB/T 22638-2008; RoHS, REACH, SGS compliant
Annual Production Capacity	30,000 tons (with slitting, lamination, coating)

Core Advantages

Minimized Electrical Losses: High-purity aluminum delivers low resistance, cutting power loss in conductive and shielding applications.
Superior Thermal Performance: Excellent thermal conductivity enables efficient heat dissipation for thermal management systems.
Strong Mechanical Reliability: Uniform structure and tight edge control resist tearing and deformation during processing.
High Space Utilization: Ultra-thin, lightweight design reduces weight and volume for optimized component integration.

Product Features

Customizable Specifications: Tailored thickness, width, and length meet diverse packaging, electronics, and construction needs.
Surface Quality Excellence: Smooth, burr-free surfaces ensure consistent performance in lamination and conductive applications.
Corrosion Resistance: Natural oxide layer and coatings provide long-term durability in harsh environments.
Strict Quality Inspection: Advanced testing guarantees compliance with SGS, RoHS, and REACH standards.
