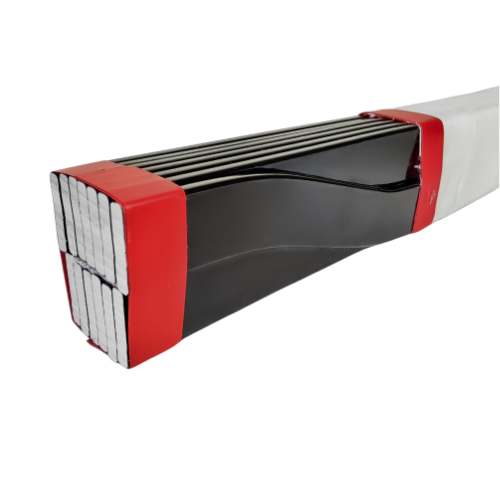

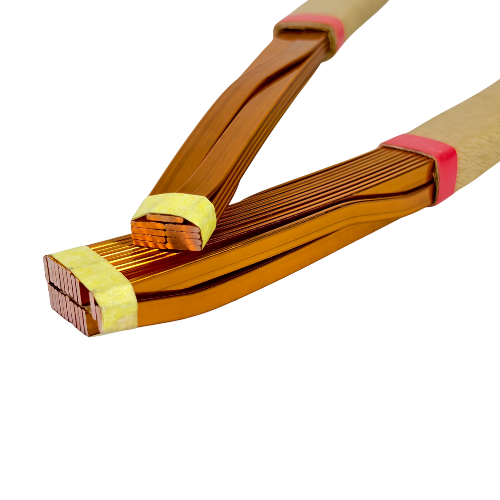

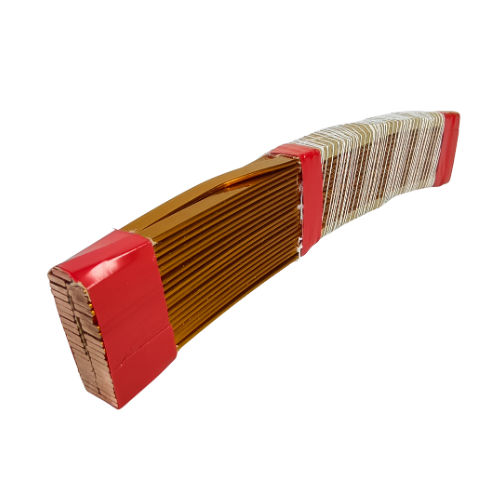

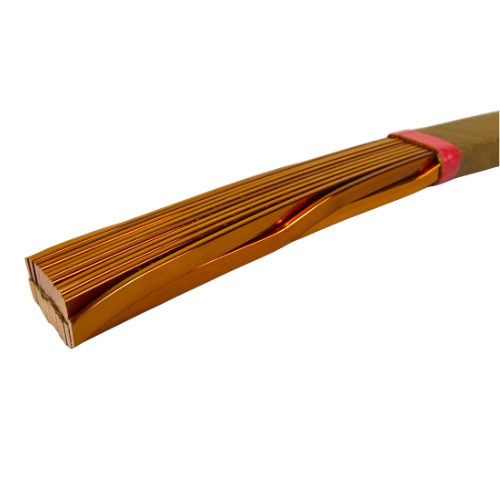

Product Name: CTC wire
Key Highlights: Superior electrical conductivity, good flexibility and reliable insulation protection
Customization: Support customization needs.
Certification: Certified by IEC/ISO/UL/CE/ROHS


Technical Parameters

Conductor Size	a: 0.80-2.50 mm; b: 2.00-12.50 mm
Elasticity	≤5°
Yield Strength (Semi-Hard)	100-280 MPa
Elongation	>25% (Semi-Hard)
	>30% (Soft, 0.80≤a≤1.60 mm)
	>32% (Soft, 1.60<a≤2.50 mm)
Insulation Thickness	0.30-4.95 mm
Number of Conductors	5-87 pieces
Self-Adhesion	≥5 N/mm²
Same Batch Yield Strength Deviation	≤5%

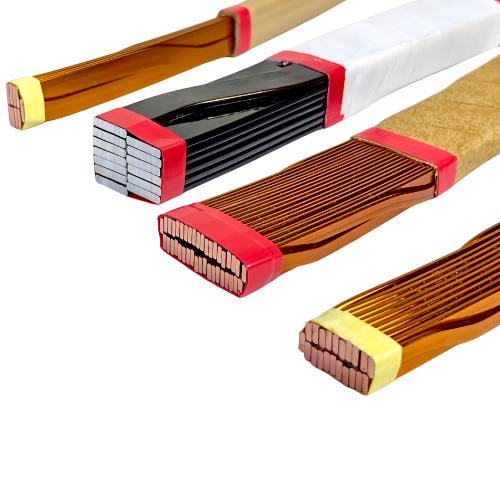

Product Varieties

TYPE	NAME
HM	Transformer Interturn Insulated Paper Acetal Enameled Transposed Conductor
HN	Paper-insulated self-adhesive acetal enameled transposed conductor
HFZ	Polyester fiber non-woven fabric tape insulated, Class155 modified polyester enameled transposed conductor
HMC1	Paper-insulated acetal enameled transposed semi-hard conductor
HC1N	Paper-insulated self-adhesive acetal enameled transposed semi-hard conductor
HWN	Grid-bound self-adhesive acetal enameled transposed conductor
HWC1N	Grid-bound self-adhesive acetal enameled transposed semi-hard conductor
HRC1N	Melamine heat-resistant paper-insulated self-adhesive acetal enameled transposed semi-hard conductor
HXZY	Aromatic polyamide paper insulated, Class 180 polyesterimide enameled transposed conductor
HX(ZX/XY)	Aromatic polyamide paper insulated, Class 200 polyesterimide/polyamide-imide composite enameled transposed conductor
HXQZYY	Aromatic polyamide paper insulated, Class 180 polyesterimide enameled transposed semi-hard conductor
HFZ	Polyester fiber non-woven fabric tape insulated, Class 155 modified polyester enameled transposed conductor
HFZC1	Polyester fiber non-woven fabric tape insulated, Class 155 modified polyester enameled trans-posed semi-hard conductor

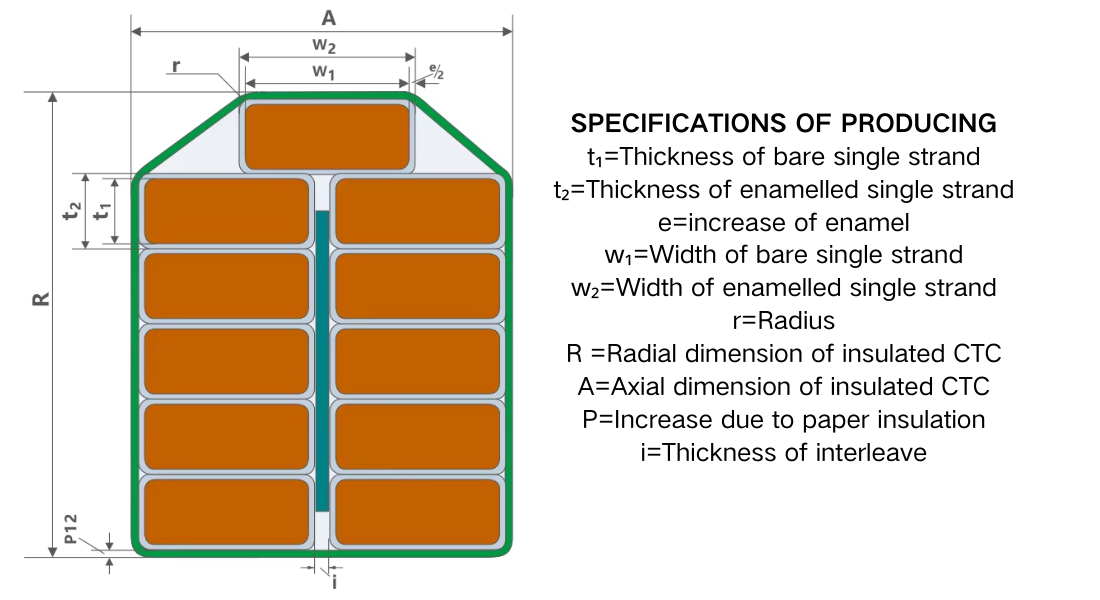

Section View


Core Advantages

Minimized Losses：Precise transposition cuts circulating/eddy current losses, boosting transformer efficiency.
Superior Thermal Performance：Optimized structure enables fast heat dissipation, ensuring high-temperature stability and longer service life.
Strong Mechanical Reliability：Tightly wrapped integrated structure resists operational/short-circuit mechanical stress effectively.
High Space Utilization：Multi-strand design raises space factor, reduces transformer volume and simplifies processing costs.

Product Features

Integrated design: Reduces assembly steps for customers, improving equipment installation efficiency.
Customized combination: Supports flexible combination of conductors, insulation materials, and structures.
Superior performance: Synergizes the advantages of different materials to achieve higher conductivity and better insulation.
Strict quality inspection: Equipped with advanced testing equipment such as corona resistance testers and eccentricity analysis microscopes.
